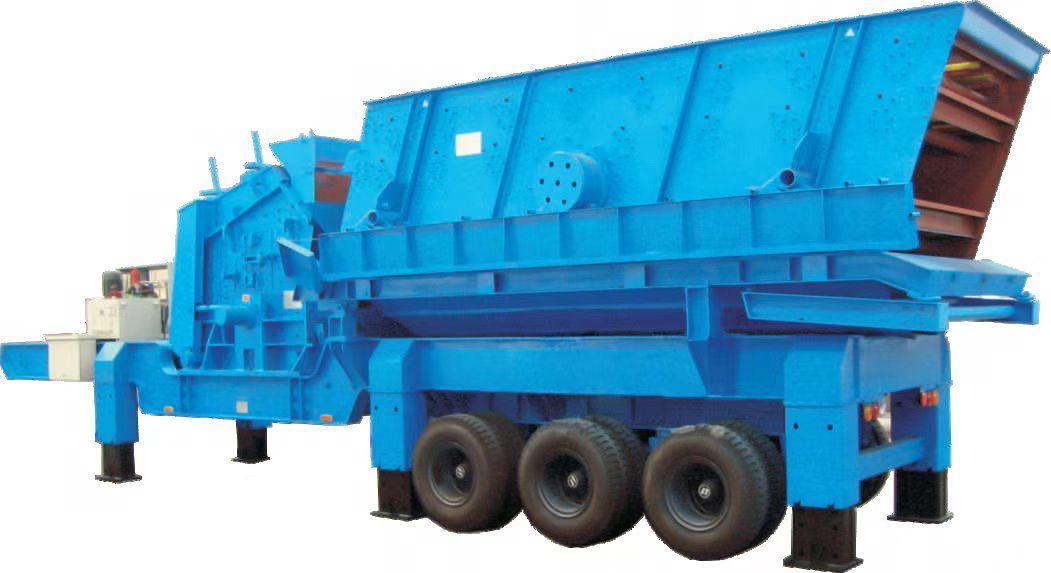

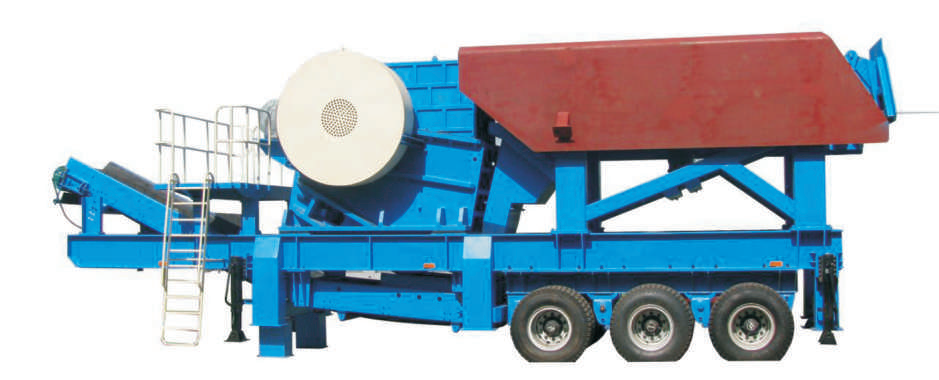

PD series mobile impact crusher screening station
Key words:
PD series mobile impact crusher screening station
- Product Description
- Detailed parameters
-
- Commodity name: PD series mobile impact crusher screening station
Product Introduction
Shanling Machinery Equipment Co., Ltd.'s impact mobile crushing station adopts new manufacturing technology and selects high-quality high-chromium hammers and wear-resistant impact liners. It has a large crushing ratio, and combined with the superior finished particle shape of the impact crusher itself, this mobile crushing unit has a wider range of applications.
Performance Characteristics
High-Performance Crusher
Vehicle-mounted feeder, vibrating screen, conveyor belt
Convenient for road transport
Quick and convenient on-site equipment installation
Integrated motor and control box
-
Technical Parameters
PD Impact Crusher
PD10PF3S
PD12PF3S
PD14PF3S
PD13PF3S
Transportation Size
Length (mm)
10800
12500
14700
14500
Width (mm)
2780
2780
2900
3000
Height (mm)
4010
4200
4420
4500
Weight (t)
28.8
35
40.3
47
Axle Load (t)
20.2
24.5
26
32.4
Drawbar/Load (t)
50/8.6
50/10.5
90/14.3
90/14.6
Impact Crusher
Model
PF1010
PF1210
PF1214
PF1315
Inlet Size (mm)
400×1080
400×1080
400×1430
860×1520
Maximum Feed Size (mm)
350
350
350
500
Output (t/h)
50-80
70-120
100-180
160-250
Vibrating Screen
Model
3YK1235
3YK1545
3YK1860
3YK2160
Conveyor Belt
Model
B650×6.2Y
B800×7.2Y
B1000×8.2
B1000×8.2
Chassis Axle Number
Number of Axles
2
2
2
3
Note: The above parameters are for reference only. In case of updates or changes, please refer to the technical data.
