ZSW vibrating feeder

Classification：

Conveying and screening equipment

Key words:

Message

Product Description
Detailed parameters

- Commodity name: ZSW vibrating feeder
Product Introduction

The ZSW series vibrating feeder is a vibrating feeder driven by a motor-driven exciter. It is mainly used for continuous and uniform feeding before the primary crusher, and can simultaneously screen fine materials, increasing the capacity of the crusher. It is suitable for feeding equipment such as jaw crushers, primary impact crushers, and hammer crushers, and can also be used for conveying. It features stable vibration, a specially designed grate to prevent material blockage, adjustable grate gap, and optional installation of a variable frequency speed regulating motor for easy control of the feeding rate, eliminating the need for frequent motor starts.

Performance Characteristics

1. Stable vibration;

2. Specially designed grate to prevent material blockage;

3. Adjustable grate gap;

4. Optional variable frequency speed regulating motor for easy control of feeding rate, eliminating the need for frequent motor starts;

Working Principle

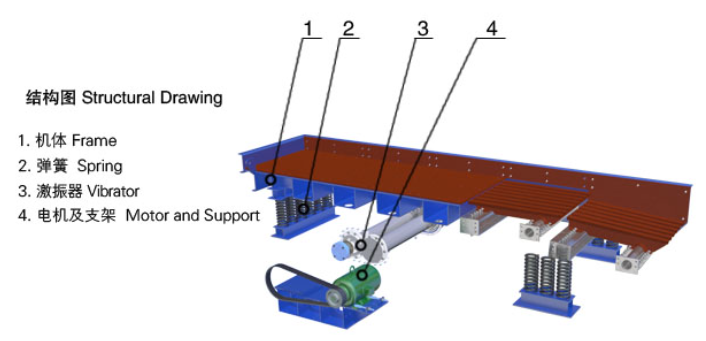

The ZSW series vibrating feeder consists of a feeding trough, exciter, spring support, and transmission device. The vibration source for the trough vibration feeding is the exciter, which consists of two eccentric shafts (main and passive) and a gear pair. The main shaft is driven by an electric motor via a V-belt, and the main shaft gear meshes with the passive shaft to rotate. The main and passive shafts rotate in opposite directions simultaneously, causing the trough to vibrate and allowing the material to flow continuously, achieving the purpose of material conveying.

Model	Maximum feed size	Capacity (t/h)	Motor power (kw)	Dimensions (L×W×H)mm	Trough size (mm)
ZSW-380×95	500	96-160	11	3880X1620X1220	3800x950
ZSW-490×95	500	120-240	15	4950X1656X1230	4900x950
ZSW-490×110	580	120-280	15	4950X1656X1230	4900x1100
ZSW-490×130	750	400-560	22	4990X2010X1345	4900x1330
ZSW-590×110	600	200-350	22	5950X1656X1375	5900x1100
ZSW-600×130	750	400-560	22	6085X1990X1345	6000x1300
ZSW-600×150	1000	460-660	30	6085X2190X1400	6000x1500
ZSW-600×180	1200	500-800	37	6085X2290X1685	6000x1800
ZSW-600×200	1400	600-1000	45	6095X4090X1800	6000x2000
