Commodity name: PYT series spring cone

Product Introduction

The PYT spring cone crusher is one of the most widely used cone crushers in the domestic market and also one of the earliest cone crushers used in the mining industry. It features reliable structure, stable operation, high production efficiency, easy adjustment, and uniform product particle size.

Our company has nearly 20 years of history in manufacturing cone crushers, and this product is one of our main products. Ordinary cone crushers have four specifications: 900, 1200, 1750, and 2200. Each specification has various cavity types: medium, standard, and short-head type crushing cavities, which can meet the needs of different users, different ore crushing processes, medium crushing, and fine crushing.

Performance Characteristics

Reasonable structure, advanced crushing principle and technical parameters, reliable operation, low operating cost

High crushing force, high production efficiency, high output

Reliable spring safety system, providing more effective overload protection

Multiple crushing cavity structures to suit a wide range of product particle size requirements

Manual hydraulic adjustment of the discharge port, easy and effortless

Working Principle

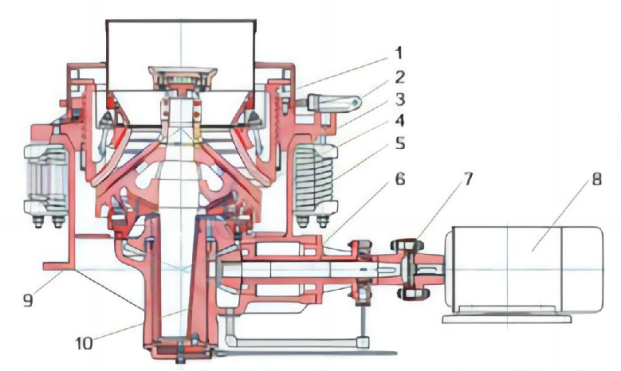

Internal Structural Parts
1. Adjusting Sleeve	6. Transmission
2. Bearing Sleeve	7. Coupling
3. Crushing Cone	8. Main Motor
4. Bowl Bearing	9. Frame
5. Spring	10. Eccentric Shaft

model	Dynamic cone diameter (mm)	Inlet size (mm)	Feed outlet size (mm)	Maximum feed side length (mm)	Processing capability (t/b)	power (kw)	weight (t)
PYB-900	900	135	15-50	115	50-90	55	11.2
PYZ-900	900	70	5-20	60	20-65	55	11.2
PYD-900	900	50	3-13	50	15-50	55	11.3
PYB-1200	1200	170	20-50	145	110-168	110	24.7
PYZ-1200	1200	115	8-25	100	42-135	110	25
PYD-1200	1200	60	3-15	50	18-105	110	25.3
PYB-1750	1700	250	25-50	215	280-480	155	50.3
PYZ-1750	1700	215	10-30	185	115-320	155	50.3
PYD-1750	1700	100	5-13	85	75-230	155	50.2
PYB-2200	2200	350	30-60	300	590-1000	280/260	80
PYZ-2200	2200	275	10-30	230	200-580	280/260	80
PYD-2200	2200	130	5-15	100	120-340	280/260	81.4
