PF series impact crusher

Classification：

Crushing and sand making equipment

Key words:

Message

Product Description
Detailed parameters

- Commodity name: PF series impact crusher
Product Introduction

The PF series impact crusher is mainly used for secondary crushing. It can crush materials with a compressive strength of no more than 320Mpa. It features a simple structure, large crushing ratio, and high production efficiency. It is suitable for the mining, cement, coal, metallurgical, building materials, highway, and petrochemical industries for stone materials.

Performance Characteristics

1. Multi-cavity uniform crushing, suitable for crushing hard rock;

2. The evener plate structure makes the discharged material more fine-grained and cubic, without internal cracks;

3. Low and large inlet, convenient for production line layout and increasing the inlet size;

4. Full hydraulic opening, convenient for maintenance and replacement of wearing parts;

5. New wear-resistant materials make the hammers, impact plates, and liners last longer.

Working Principle

An impact crusher is a machine that uses impact energy to crush materials. When this machine is working, driven by the motor, the rotor rotates at high speed. When the material enters the hammer action area, it collides with and is crushed by the hammers on the rotor, then thrown to the impact device for secondary crushing, and then bounces back from the impact liner to the hammer action area for re-crushing. This process is repeated. The materials, from large to small, repeatedly undergo crushing in the first, second, and third impact chambers until they are crushed to the required particle size and discharged from the outlet. Adjusting the gap between the impact frame and the rotor can control the output particle size and material shape.

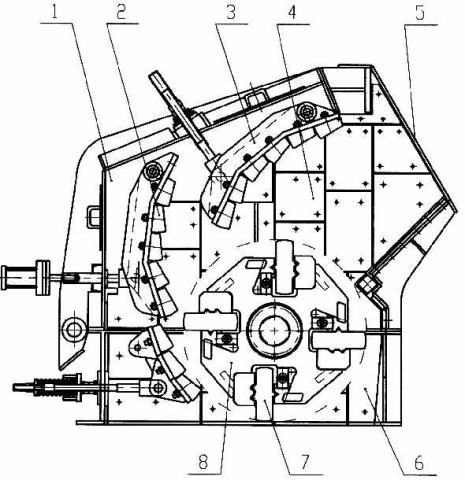

Internal Structure

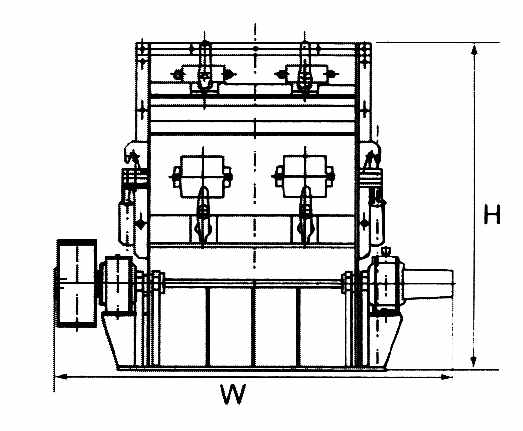

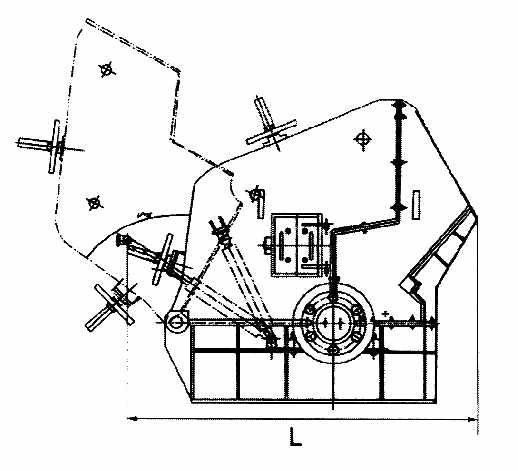

model	Specification	Inlet size	Maximum feed side length (mm)	Passage quantity (T/h)	Motor power (kw)	Dimensions (L×W×H)(mm)
PF-1007	Φ1000×700	720×400	300	30-50	37-55	2370×1540×2630
PF-1010	Φ1000×1050	1070×400	300	50-80	55-75	2400×2250×2630
PF-1210	Φ1250×1050	465×1160	350	70-120	110-132	2640×2370×2890
PF-1214	Φ1250×1400	465×1500	350	90-160	132-160	2640×2720×2890
PF-1315	Φ1320×1500	990×1600	500	120-200	160-200	3510×3040×3020
PF-1320	Φ1320×2000	990×2000	600	200-400	220-250	3510×3540×3020
PF-1520	Φ1500×2000	1315×2040	700	300-500	2×220	3890×3560×3220
